CS050 – Ductless Split Ceiling Mounted Cooling System
CS050 – Ductless Split Ceiling Mounted Cooling System
$8,952.00
Description

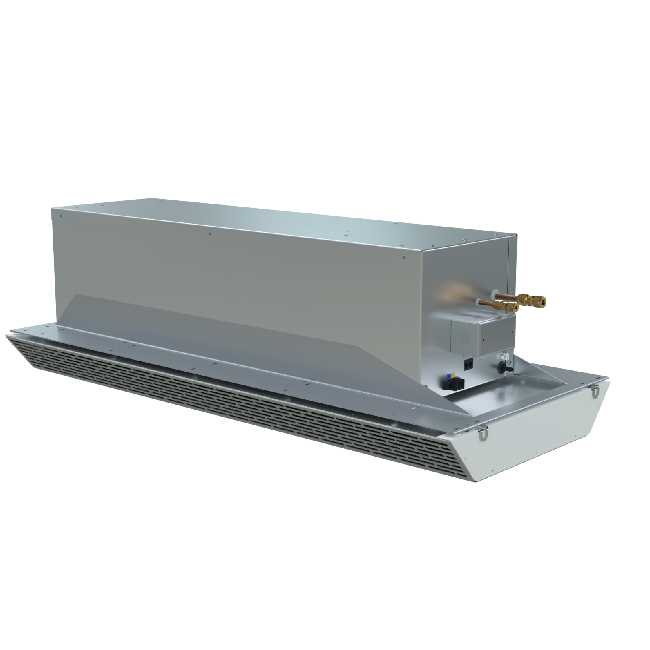

Wine Guardian’s Ceiling Mount Cooling System provides optimal cooling and airflow to maintain long-term wine storage conditions. It was designed to mount completely flush with the ceiling of a wine wall so that no obtrusive wine cooling equipment is visible in the space. The system has the ability to control wine wall conditions for both long-term storage (55°F/13°C to 58°F/14°C) and serving temperatures (down to 45°F/7°C).
Wine Guardian’s CS050 ceiling mounted wine cooling unit is ideal for small- to mid-size wine rooms which cannot accommodate a traditional unit. This split system is ideal for applications such as all-glass wine storage spaces and fits comfortably between standard joist construction. Maximum capacity is 4,300 BTU/H.
Condensing unit is patented. US Patent No. D791295. EU Patent No. 003189349-0001. UK Patent No. 9003189349000.
| Model | CS050 (Ceiling Mounted) |
|---|---|
| Line Frequency | 60 Hz |
| Capacity | 1000 – 4050 BTU |
| Volume | 250 – 2200 ft³ |
| Volume max | 2200 |
| Volume min | 250 |
| Length | 43.25″ (evaporator) 34″ (condenser) |
| Width | 18.125″ (evaporator) 12.3″ (condenser) |
| Height | 13.25″ (evaporator) 26″ (condenser) |
| Weight | 48 lbs 76 lbs (condenser) |
| Electrical | 115/1/60 208-230/1/60 (condenser) |
| Where to Buy | Distributor |
Ceiling-Unit-Spec-Sheet-11-3-2022
Low Ambient Protection
Protects the system from cold temperatures below 5°C (40°F).
Serving Temperature
Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.
Available Options
Extreme Climate Protection Bundle
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
Freestanding Humidifier
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
