WineZone Ductless Split 2400a Series (for cellars up to 500cuft)

$3,995.00

Out of stock

SKU WZDS2400a Category

Description

WineZone Cooling Systems have been discontinued. Follow the link below for a similar unit or Contact US for Replacement parts.

WCC Ductless Split 2600 Equivalent to a WineZone WZDS2400a (for cellars up to 600cuft)

WineZone Ductless Split 2400a Series

Applications:

For cellars up to 512cuft

Features

Ductless Split System
Winezone Split Refrigeration System Diagram for a Wine Cellar
Applications:
• Most economical split system to purchase and install
• Allows transfer of heat to a room not adjacent to cellar
• This unit is perfect for both long storage as well as commercial applications where the wine will be turned over quickly
• For rooms already constructed, rooms with concrete or brick walls, and rooms without space for ducting
• For cellars without access to a mechanical room to house an air handler
• Can be used with either an indoor or outdoor remote condensing unit, moving heat and noise away from the cellar
• Extremely quiet, attractive, wall mounted evaporator
• Attractive, 24V digital thermostat with large display controls the system
• Must be installed and adjusted by a qualified HVAC technician

Ductless Evaporator:
• Low noise evaporator fan and remote condenser design
• Economical way to cool, even where installing ductwork is impractical or impossible
• Requires only one small hole through wall to run lines for refrigerant, electric and condensate drain
• Washable filters
• Stylish grille cover is easily detached and cleaned

Indoor condenser:
• UL listed Copeland® commercial condensing unit.
• Uses R-134a refrigerant
• Air cooled units standard
• Receiver for use with thermostatic expansion valve
• 4″ galvanized iron base
• Variable speed fan control
• Crankcase heater on all models
indoor wine cellar refrigeration
Outdoor Condenser:
• UL listed Copeland® commercial condensing unit.
• Uses R134a refrigerant
• Air cooled units standard
• Receiver for use with thermostatic expansion valve
• Rainproof control panel box with liquid tight conduit on control panel
• Low ambient controls

• Variable speed fan control
• Crankcase heater on all models
Outdoor Condenser
outdoor refrigeration condenser
Outdoor Enclosure:
• UL Listed enclosure
• Galvanized steel base
• 20 GA. Galvanized steel cabinet
• Hinged access for easier servicing
• Wind safety latch
• All season weather protection

  • Front louvers at 45° angle
  • Rain trough under hinge to catch moisture that might seep through hinge
  • Condenser screen protected with high temperature baked-on clear lacquer coating

Honeywell® Thermostat:
• Attractive styling complements any décor
• Large display for easy readability
• Keys are located by the display for easy access
• Easy installation, setup and self test saves installer time
• Set points permanently held in memory and are retained during power outages



Lead Times : Most Winezone refrigeration units have a 1-2 week lead time, with the exception of any units ordered with ceiling mounted evaporators, which have a 4-5 week lead time.



Specifications

2400a BTUH Ductless Split Specifications

Condenser:

Voltage Ampacity Max. Fuse Min. Wire Size RLA/LRA dB
115-60-1 9.5 15 12-2 w/Gr 6.9/39 50
  • 1/4″ x 3/8″ line set up to 70 equivalent feet. See the installation sheet for line set sizing up to 200 equivalent feet maximum.
  • Unit is not pre charged and must be evacuated
  • For use with R-134a refrigerant.
  • Dimensions:
    Indoor Unit: 25″ x 20 1/2″ x 14 1/2″ 89 lbs.
    Outdoor Unit: 27″ x 20″ x 20″ 114 lbs.

Wall Mounted Evaporator:

Voltage Motor Output Max. dB Filter
115-60-1 15 Watts 40 Washable
  • Receives load voltage from condenser
  • Drain line is 5/8″ barbed
  • Dimensions: 28″ W x 9 7/16″ H x 7 1/8″ D 15 lbs.

Thermostat:

  • Honeywell FocusPRO5000 or Peco 12532 if ordered with humidifier
  • 18-gauge 5 wire to the condenser

Approximate Shipping Weight:

  • 210-250 lbs.

Crate Size: 31″ x 37″ x 41″ T

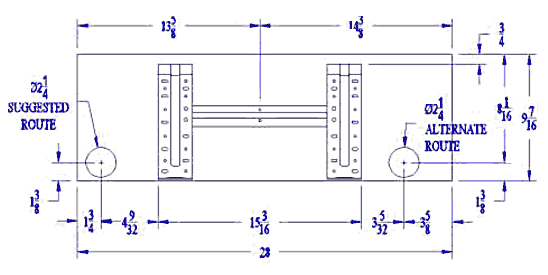

The holes shown are the best locations to route the refrigerant lines, condensate drain, and electric. For installations where the line set will be accessible on the backside of the wall, use the suggested route. When that is not possible, and the line set will be run inside the wall before the drywall is installed, use the alternate route. This will leave the flare connections exposed so they can be connected after the walls are finished.



WineZone2400a-Spec       Ceiling Mount Evaporators      WZDS2400a-InstallationInstructions
