CellarPro AH8500SCv-ECX Cooling Unit (P/N 7109). CellarPro engineered the AH8500SCv-ECX ducted cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 2,500 cubic feet. The evaporator and the condensing unit each can be ducted up to 100 equivalent feet (50 equivalent feet per duct.) Designed for internal installations, the AH8500SCv-ECX includes independent energy-efficient variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power. This unit has a vertical configuration for installations in locations with limited floor space (eg on the floor in a mechanical room).

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.



7156 SENSIBLE BTUH @ 55F.
CellarPro’s AH8500SCv-ECX ducted cooling units (1 Ton Nominal) are engineered for wine cellars up to 2,500* cubic feet in both commercial and residential wine cellars. When ducted, this unit uses 10-inch insulated ducting on the cold side, and 10-inch ducting on the hot side.

This unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110F. AH8500SCv units use energy-efficient EC fans and are significantly quieter than comparable units from other brands. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

Our Compressor Heater (P/N 1727) is included to protect the compressor in temperatures down to 20F. For installation in environments below 20F down to -20F, our Fan Cycling Switch (P/N 6972) is a required addition.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar. Cold-side ducting, glass and/or uninsulated walls, extreme humidity, altitude and other factors may affect the sizing calculation.

Our cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

CONFIGURATIONS:

    • CellarPro AH8500SCv-ECX units are fully-charged and ready to use out of the box. These cooling units are designed to be ducted up to 100 Equivalent Feet (50 Feet per Duct) with 10-inch ducting .
    • CellarPro’s vertical configuration allows multiple ducting alternatives, as follows.
      1. Collars or grills for EXHAUST (ie Supply) are located at the front (shown at left), right, rear or top (EVAPORATOR ONLY) of the cooling system, and are interchangeable to meet your specific requirement.
      2. Collars or grills for INTAKE (ie Return) are located on the left for both the evaporator and condenser, and include professional-grade air filters to protect the unit.
    • We recommend pulling the fresh air intake (hot-side) from a temperature-controlled environment other than the cellar. If the hot-side exhaust will be directed to a different space than the intake, always make sure that both spaces are sufficiently voluminous so that you don’t run into issues with negative pressure.
    • A bottle probe temperature sensor (10′ cord) plus your choice of duct collars, indoor grills and blank plates are included in the price of the cooling system.
    • CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
      1. One cord for the compressor, which pulls 11.4 amps and requires a dedicated 20 amp circuit breaker
      2. One cord for the rest of the components, which pull 3.2 amps and require a dedicated 15 amp circuit breaker
      3. The data above is not valid when the integrated heater and/or humidifier are configured with the cooling unit
    • When the control panel is difficult to access, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
    • When not ducted, the hot side of the cooling unit (condenser) requires 12 inches of unobstructed space in front of the coils, and requires approx. 600-700 CFM of ventilation when installed in a confined space.
    • For installations in environments below 40F, AH8500SCh units require our Compressor Heater (P/N 1727) .
    • For installation in environments below 20F down to -20F , our Fan-Cycling Switch (P/N 6972) is required in addition to the compressor heater (both sold separately).
    • The cold side of the cooling unit (evaporator) should never be exposed to temperatures below 32F.
    • We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.

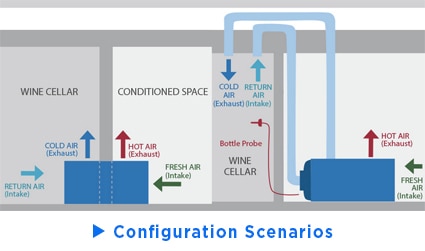

    • Configurations
  • Now with energy-efficient EC Fans on both the cold and hot sides, save $300.77 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
  • CellarPro Air Handlers are engineered to be ducted with 10-inch insulated ducting on the cold side (evaporator) and/or 10-inch ducting on the hot side (condensing unit), allowing the equipment can be located out-of-sight where it won’t be heard.
  • High-output EC fans provide more airflow and variable speed settings for your choice of cooling power.
  • Optional integrated humidifier provides the ultimate control of moisture levels inside your cellar.
  • Optional integrated heater provides heat for wine cellars that are exposed to temperatures below 55F.
  • Extra-large coils generate maximum cooling power inside the cellar.
  • Excess condensate is managed through an extra-large 1/2″ drain line, amply sized to reduce blockages.
  • Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
  • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • Temperature set point range is 47F to 62F when the cooling unit is properly sized.
  • Unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
  • Remote probe for the cellar (bottle probe), air filter and duct adapters are included as standard equipment
  • Factory-installed Expansion Valve ensures maximum operating precision and range.
  • Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
  • Cooling system is fully-charged with refrigerant and ready-to-use out of the box.
  • CellarPro’s 2-Year/5-Year Warrantythe most thorough in the industry, protects the unit against manufacturing defects.
  • An optional Extended Warranty (P/N 31489) is available for additional protection.
  • ETL Tested and Certified to rigorous UL Standards for safety.

OPTIONS:

  • Cold Temperature
    • Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F
    • Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when configured with Electronic Control and combined with our compressor heater.


    Filters & Grills

    • Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

    Remote Thermostats, Displays & Probes

      • Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). Must be ordered at the same time that the equipment is ordered. Other limitations apply – read the networkable thermostat description for more information. Includes 10 feet of wiring.
      • Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring. Additional wiring is available at a cost of $0.50 per additional foot.
      • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar – included.
      • Bottle probe extension cords are available in 25-foot (#1780) and 50-foot (#1781) lengths.


      Heating & Humidification

      • Integrated Heater 900W #7237: adds 900 watts of heat through the cooling system when the cellar is in an unheated environment and will be exposed to temperatures below desired wine storage temperatures.
      • Integrated Humidifier #7236: provides humidification with digital control inside the cellar when attached to an external water line.

Limited Warranty Policy

1800 QTL / QT / XT / XTS (110V Models): For five years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship. Click here for information about our extended warranty.

1800 XT-220V, 1800 XTx-220V, 1800XTS 220V: For two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.

1800H Houdini, 1800 XTSx, 2000 VSi/VSx, 3200 VSi/VSx, 3200VEi / 3200VEx, 3400H Houdini, 4200 VSi/VSx, 4200VEi / 4200VEx, 6200 VSi/VSx, 8200 VSi/VSx (110V Models): For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship. Click here for information about our extended warranty.

1800H Houdini 220V, 2000VS 220V, 3000S 220V, 4000S 220V / 4200VSi/VSx 220V: For one year from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.

Split Systems (115V Models), Air Handlers: For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of original delivery, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship. For all split systems, the warranty will not be activated until the Warranty Activation Checklist has been completed and submitted to CellarPro. The warranty period starts from the time of purchase, regardless of the time of activation.

For all products covered by the terms of this warranty, CellarPro will repair or replace the original cooling unit with a new or refurbished cooling unit and, once replaced, the original cooling unit must be returned to CellarPro.

All service provided by CellarPro under the above warranty must be performed by CellarPro or a designated repair facility unless otherwise specified by CellarPro. Purchaser is responsible for shipping the wine cooling unit to and from CellarPro or to and from a designated repair facility, and for removing and reinstalling the wine cooling unit from the wine cellar.

The limited warranty applies only to wine cooling units purchased from the factory or an authorized dealer. Damage caused by others or by any cause beyond the control of CellarPro, shall not be considered defects in material or workmanship and are not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.

To receive parts and/or service and the name of a CellarPro designated repair facility nearest you, contact your CellarPro dealer. You may also contact CellarPro directly by calling us at 1.877.726.8496.

Flat rate subsidized Shipping in the Continental USA

Brand: CellarPro

UPC: 077757071096

Size: 18 5/8w x 18 5/8d x 37 7/8h (in) 10-inch ducting

Weight: 220 lbs

Power/Rating:
– CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:

  1. One cord for the compressor, which pulls 11.4 amps and requires a dedicated 20 amp circuit breaker
  2. One cord for the rest of the components, which pull 3.2 amps and require a dedicated 15 amp circuit breaker

– Startup Amps: 54.5 Amps
– Running Amps Cord-Connected: 14.6 Amps
– Total Watts: 1078 (medium fan speed)
– 1 Ton Nominal



BTUH @ 55F
– Low Fan Speed: 6245
– Med Fan Speed: 6649
– High Fan Speed: 7156

Decibels
Evaporator Decibels
– Low Fan Speed, Ducted: 38 dbA
– Med Fan Speed, Ducted: 44 dbA
– High Fan Speed, Ducted: 52 dbA

Condenser Decibels
– Low Fan Speed, Ducted / Non-Ducted: 45 dbA / 58 dbA
– Med Fan Speed, Ducted / Non-Ducted: 52 dbA / 65 dbA
– High Fan Speed, Ducted / Non-Ducted: 57 dbA / 70 dbA

Owners Manual Air Handler ECC

AH6500-AH8500-Horizontal-Configuration
